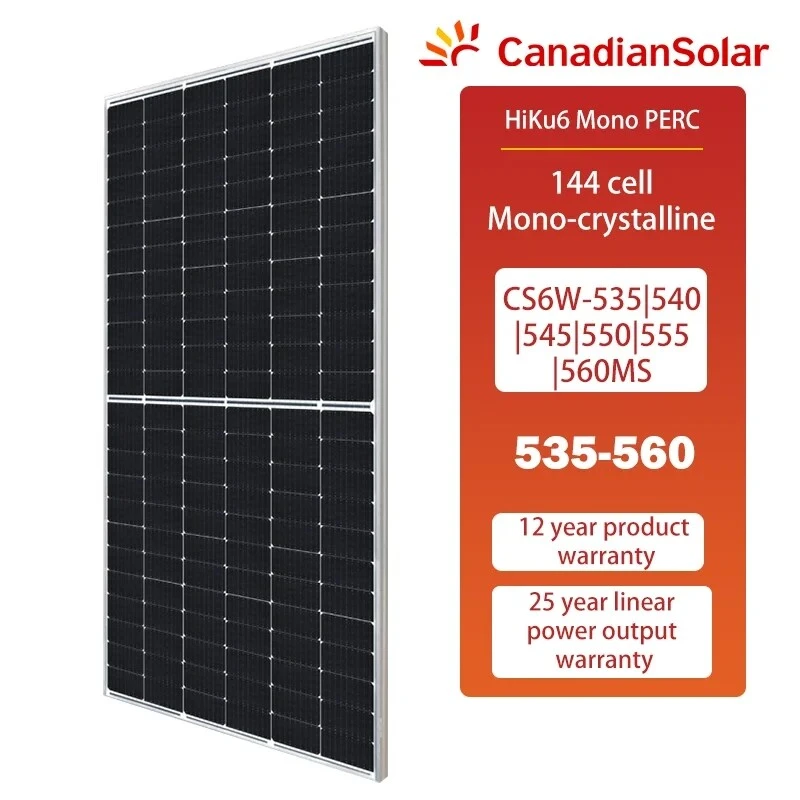

Canadian Solar BiHiKu6 535-560w
Canadian Solar BiHiKu6 535-560w
Model NO: BiHiKu7 535-560W
Cell Type: Mono-crystalline
Weight:27.6 kg (60.8 lbs)
Cables:4.0 mm² (IEC), 12 AWG (UL)
Transport Package:Wooden Pallet and Carton Packing
Specification:2278*1134*30mm
Trademark:Canadian solar
Origin:China
Contact Us
Chat Now

Product Description



MECHANICAL DATA
Cell Type Mono-crystalline
Cell Arrangement144 [ 2*(12*6) ]
Dimensions2278*1134*30 mm (89.7*44.6*1.18 in)
Weight27.6 kg (60.8 lbs)
Front Cover3.2 mm tempered glass with anti-reflective coating
FrameAnodized aluminium alloy
J-BoxIP68,3 bypass diodes
Cable4.0 mm² (IEC), 12 AWG (UL)
ConnectorT6 or MC4-EVO2 or MC4-EVO2A
Per Pallet35 pieces
Per Cotainer(40' HQ)700 pieces or 630 pieces

ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)535w540w545w550w555w560w
Power Tolerance0-10 w
Opt. Operating Voltage (Vmp)41.1 V41.3 V41.5 V41.7 V41.9 V42.1 V
Opt. Operating Current (Imp)13.02 A13.08 A13.14 A13.20 A13.25 A13.31 A
Open Circuit Voltage (Voc)49.0 V49.2 V49.4 V49.6 V49.8 V50.0 V
Short Circuit Current (Isc)13.85 A13.90 A13.95 A14.00 A 14.05 A14.10 A
Module Efficiency20.70%20.90%21.10%21.30%21.50%21.70%
